ArrowLine Shake Metal Roofing for DFW Homes

ArrowLine Shake is EDCO’s steel answer to a cedar shake roof. It pairs a hand-split wood profile with a galvanized steel core and a PVDF finish, and EDCO rates it UL 2218 Class 4. If you want a shake look plus hail paperwork your carrier recognizes, it is the most direct pick in our lineup.

  • 20+ years of experience
  • Lifetime limited warranty
  • Free written estimates

What is ArrowLine Shake, and what sets it apart?

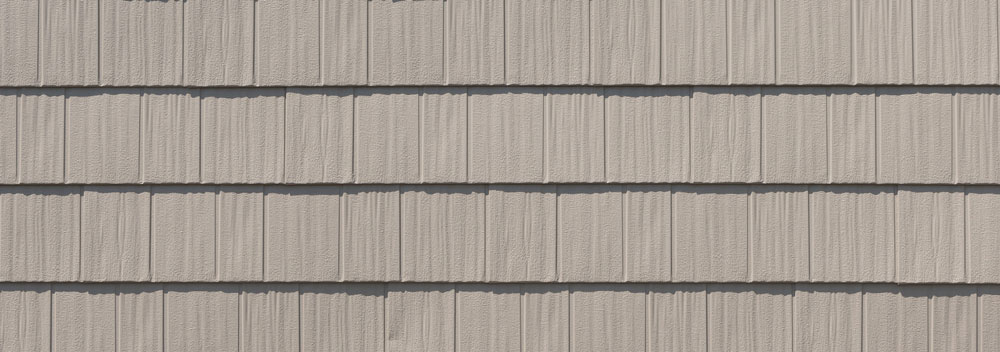

Close view of EDCO ArrowLine steel shake panels and their cedar-grain texture

ArrowLine is a stamped steel panel about 12 inches tall and 50 inches wide. Each one reads as a row of hand-split cedar shakes. The panels interlock on all four sides and fasten with concealed clips, so nothing shows from the ground.

Steel is what separates it from our aluminum shakes. It lets EDCO state a Class 4 impact rating outright, and it keeps the cost below most aluminum systems.

Color is what separates it from its sibling, Generations HD. ArrowLine comes in solid colors and two-tone Enhanced blends. Generations HD prints a detailed wood grain onto the same panel.

ArrowLine Shake specifications

These figures come from EDCO’s published literature and code evaluation reports. Product data changes, so we confirm the current sheet before every order.

SpecArrowLine Shake (per EDCO)
MaterialSteel, listed as 28-gauge with G90 galvanizing
Panel and coverageAbout 12 x 50 inches, roughly 4.17 sq ft per panel; 12 panels per 50 sq ft box
WeightAbout 74 lb per 100 sq ft, from EDCO’s 37 lb box
Interlock and fasteningFour-way interlock; concealed clips screwed to the deck
FinishPVDF with reflective pigments; solid and Enhanced blend colors
Impact ratingUL 2218 Class 4 (EDCO)
Wind ratingEDCO’s current page says over 200 mph; older EDCO literature cited 160 mph with five clips (UL 1897)
Fire ratingNon-combustible; Class A over a fire-rated layer such as DensDeck, Class C over 30 lb felt (UL 790)
Minimum slope4:12 recommended by EDCO
WarrantyEDCO lifetime, non-prorated limited warranty that EDCO says covers material and labor; 30-year fade protection on its current page; transferable
Best forCedar-shake looks on hail-exposed homes and HOA streets

Is ArrowLine Shake a good fit for Dallas-Fort Worth?

For most pitched DFW homes, yes. It answers the three questions we hear most often: hail, heat and HOA approval.

Hail

NICB and Verisk data put Texas at the top of the national list for major hail events in each of the last 11 years. EDCO’s Class 4 rating is the kind of documentation the Texas Department of Insurance says carriers may credit. Each carrier sets its own amount. The raised shake texture also masks minor dents that would show on a flat panel. Read our Class 4 roofing guide before you call your agent.

Heat

EDCO’s PVDF paint reflects much of the sunlight that strikes it, and the panels stay cooler than ordinary roofing as a result. That matters where the thermometer passes 100 F on roughly 20 days in an average year. Pale shades such as Sandtone and Pewter run coolest.

HOA streets and architecture

ArrowLine reads as cedar from the curb. It suits Craftsman, ranch, cottage and Hill Country-style homes. Texas Property Code 202.011 restricts an HOA from banning hail-resistant shingles that look like the approved ones. For the review committee, we assemble an HOA submittal package with samples and EDCO’s product data.

Roof pitch

EDCO recommends a slope of 4:12 or steeper. Lower porch roofs tie in with our standing seam panels in a coordinating color.

How does PMRS install ArrowLine Shake?

We install it as a complete system from deck to ridge, and we fabricate the custom pieces ourselves.

  1. Deck check. We inspect the sheathing and replace soft or delaminated boards. A hail-bruised or two-layer roof comes off.
  2. Underlayment. Where Class A matters, a fire-rated layer goes down first. High-temperature self-adhered membrane covers eaves, valleys and penetrations; our installation process shows each layer.
  3. Starter and courses. EDCO’s starter goes on at the eave. Each course then locks into the one below, with side joints staggered.
  4. Clips. We set clips at the spacing in EDCO’s evaluation report, roughly every 10 inches, with a screw in each.
  5. Flashing. Valleys, sidewalls, chimneys and crickets get custom metal flashing bent on our computerized equipment.
  6. Hips and ridge. EDCO caps finish the roof, over a vented ridge where the attic needs airflow.

One rule we never bend: copper and galvanized steel do not mix. We keep copper flashing and copper runoff off every ArrowLine roof.

Which ArrowLine Shake colors can you choose?

EDCO’s current chart lists 12 solid colors and six Enhanced blends. An Enhanced color adds a second tone, so the roof varies the way weathered wood does.

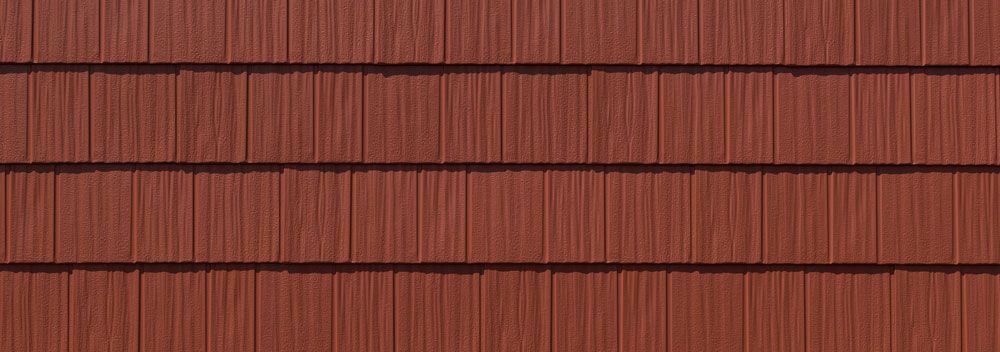

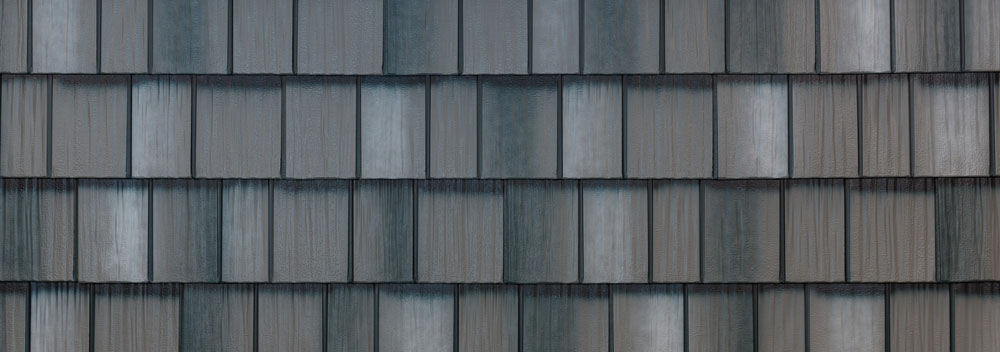

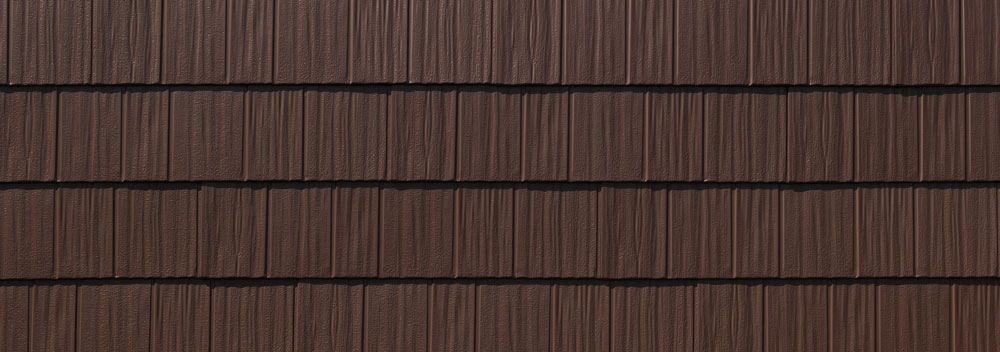

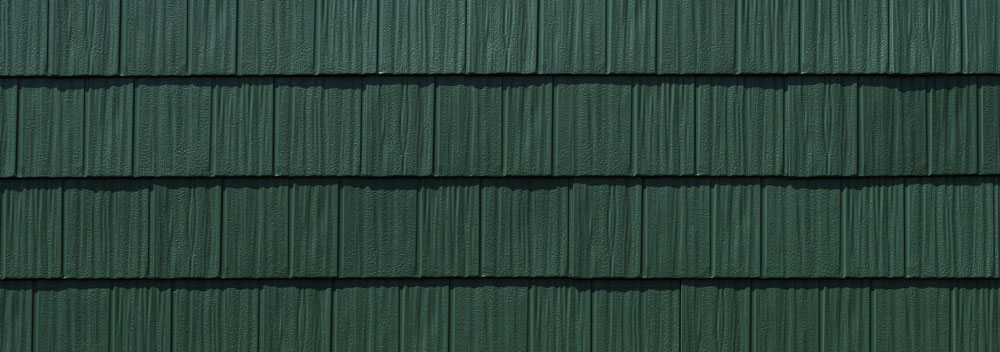

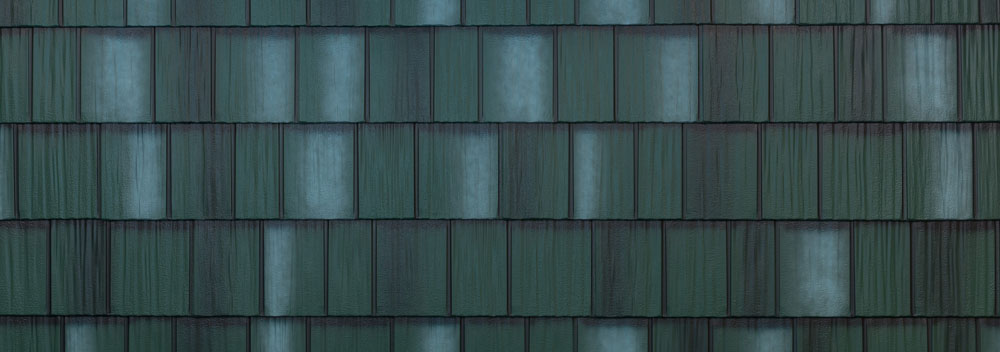

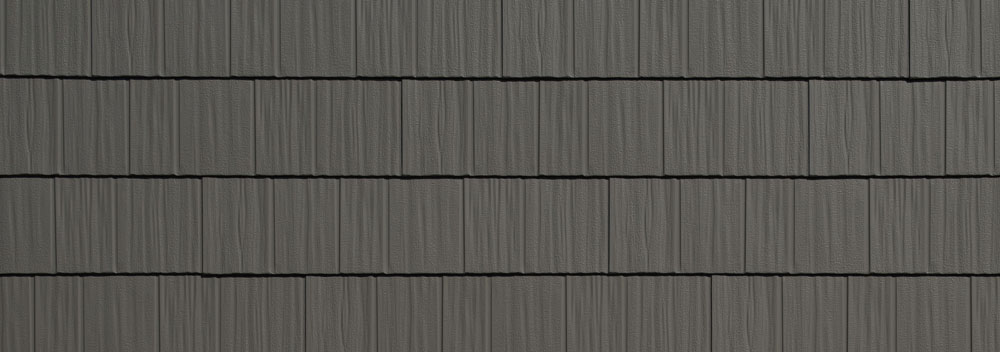

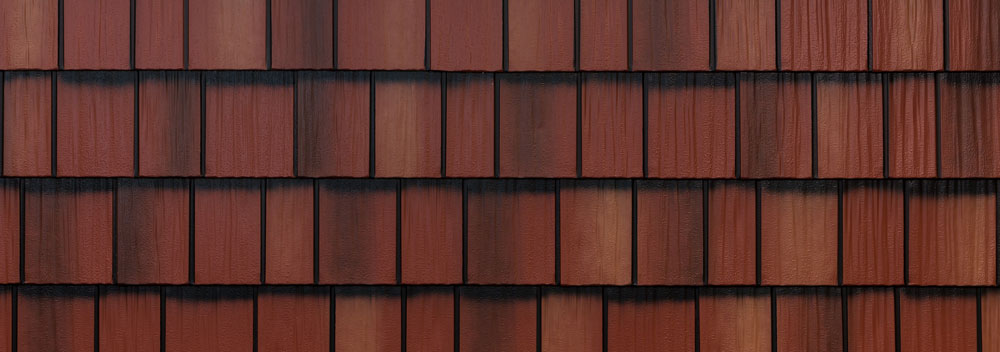

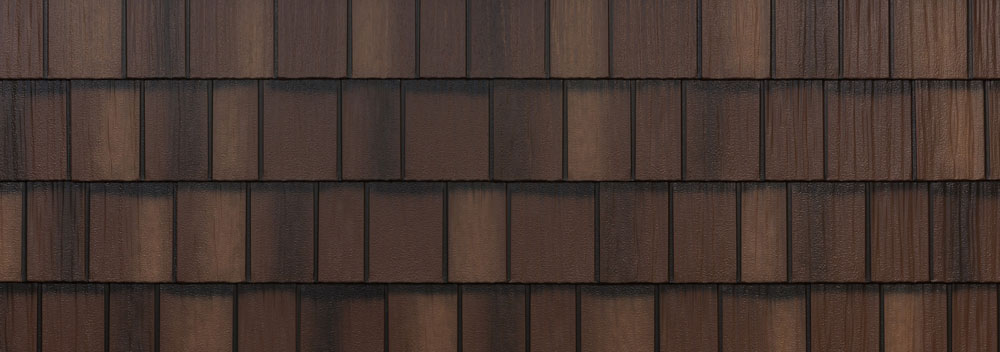

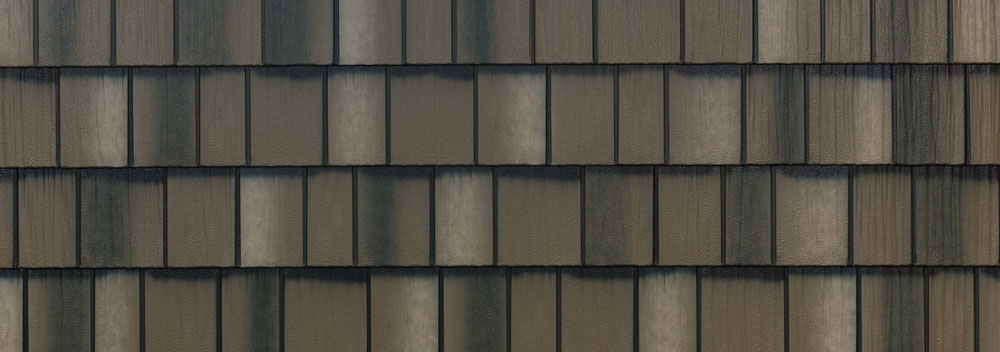

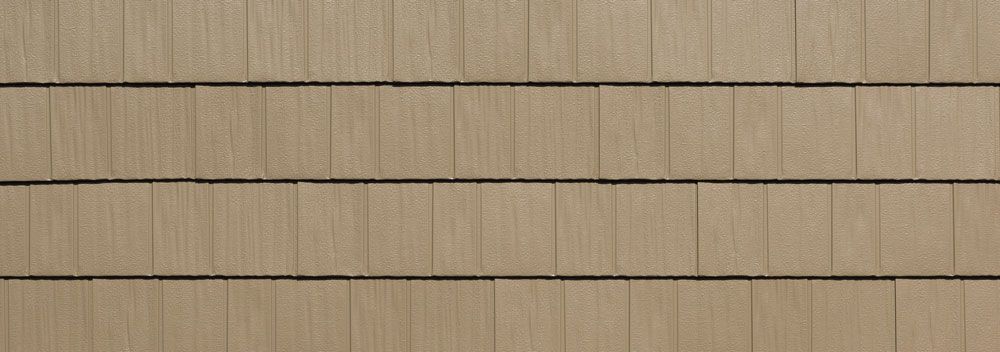

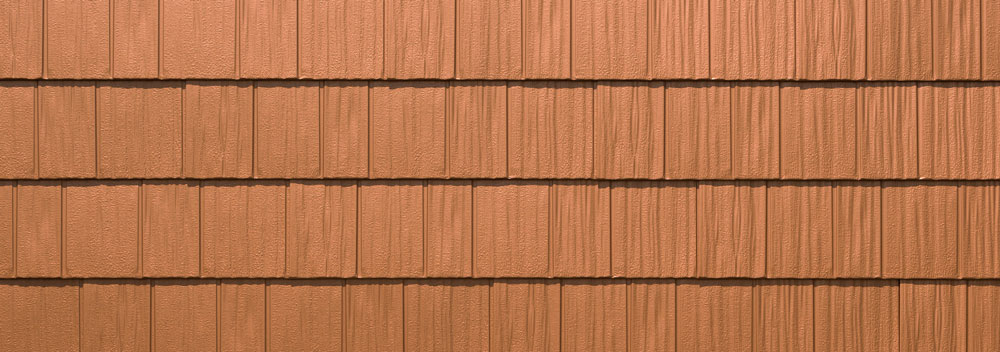

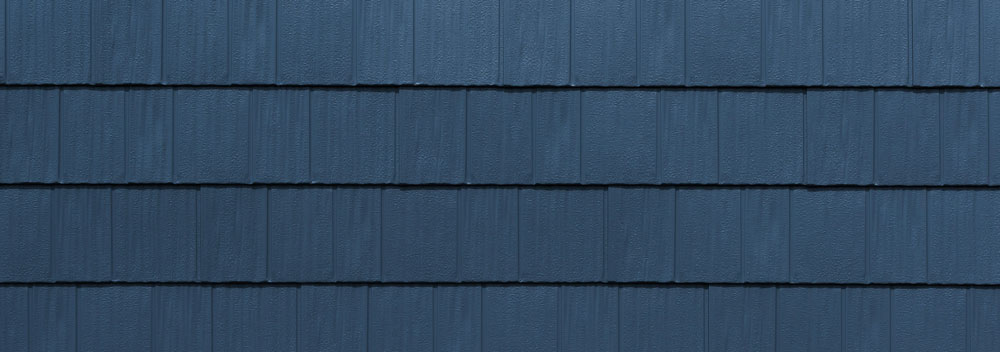

Solid colors are Black, Cedar, Charcoal Gray, Classic Blue, Classic Red, Copper, Hartford Green, Pewter, Royal Brown, Sandtone, Statuary Bronze and T-Tone. Enhanced blends come in Charcoal Gray, Classic Red, Hartford Green, Royal Brown, Statuary Bronze and T-Tone.

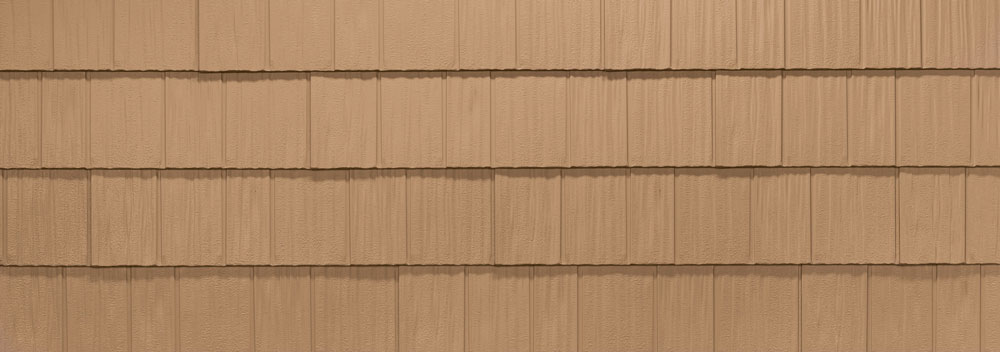

ArrowLine Shake steel color sample in Cedar
Cedar

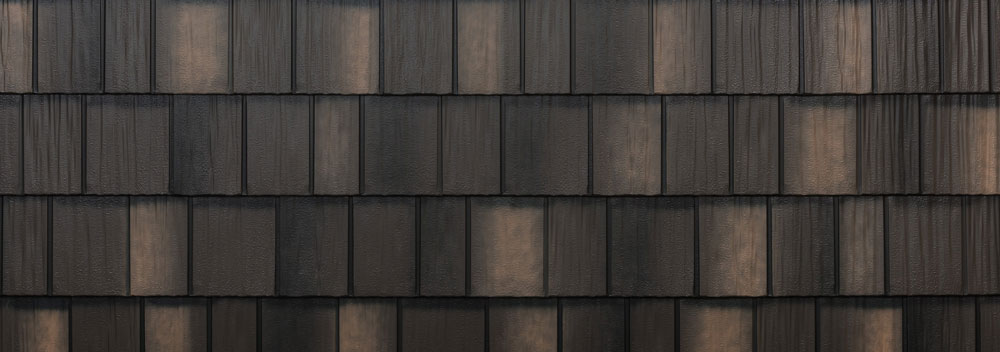

ArrowLine Shake steel color sample in Statuary Bronze Blend
Statuary Bronze Blend

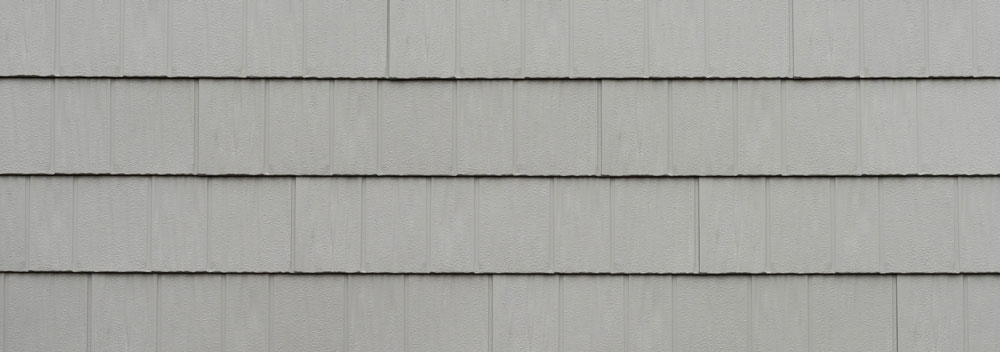

ArrowLine Shake steel color sample in Pewter
Pewter

Screens shift color, so we bring physical samples to the estimate. Our metal roof color guide explains how shade affects attic heat and HOA review.

ArrowLine Shake vs Generations HD and Country Manor Shake

Choose ArrowLine when you want a steel shake that costs less, in clean solid or blended color.

  • EDCO Generations HD uses the same steel panel and Class 4 rating with printed wood grain. Pick it when realism outranks budget.
  • Country Manor Shake is Classic’s aluminum shake. It weighs about 46 pounds per square, cannot rust, and has a looser random-width texture. Classic cites a UL impact report rather than a stated Class 4.

All seven of our options sit side by side on the metal shingles and shakes page. We quote each roof after measuring; the metal roof cost guide shows what drives the number.

ArrowLine Shake questions

Is ArrowLine Shake rated Class 4 for hail?

Yes. EDCO states a UL 2218 Class 4 impact rating for ArrowLine, the highest class in that test. We can hand you the product details your insurer asks for. Each Texas carrier decides its own credit and paperwork, so ask your agent what it needs.

What gauge is ArrowLine Shake?

EDCO’s literature lists ArrowLine as 28-gauge G90 galvanized steel with a PVDF finish. Much of its stiffness comes from the deep shake embossing and the four-way interlock rather than thickness alone. We confirm the current EDCO spec sheet with every order.

Can ArrowLine Shake go over an existing roof?

Sometimes. We inspect the deck first. One layer of flat asphalt over sound sheathing may stay in place. Hail damage, soft spots or two existing layers mean a tear-off, and your estimate states which method we chose and why.

Does ArrowLine Shake need a special underlayment?

For a Class A fire rating, EDCO’s listing calls for a fire-rated layer such as DensDeck under the panels; over plain 30-pound felt it drops to Class C. We also use high-temperature membrane at eaves and valleys, because steel runs hot in a Texas summer.

How long does an ArrowLine Shake roof last?

EDCO covers it with a lifetime, non-prorated limited warranty, which EDCO says extends to material and labor, and adds fade protection. In Texas, a metal roof typically gives 40 to 70 years of service; asphalt here usually manages 15 to 20. Ask us for the current EDCO warranty document.

Warranty terms for every product we install are summarized on our warranties page.
